revolution 20 Oct 2025, 08:35

It is possible to use fewer multiplies if the code is permitted to include DIV.

For example n=127 can be done with 7 multiplies and one division. Compared to 12 multiplies if DIV is not used. This can be a win if DIV costs less than 5 multiplies.

20 Oct 2025, 08:35

macomics

Joined: 26 Jan 2021
Posts: 1197
Location: Russia

macomics 20 Oct 2025, 08:55

I think there is much more to be won by not using a conditional loop, but by writing the hardcode of the desired equation using commands and the mathematical form of the calculation in place.

20 Oct 2025, 08:55

macomics

Joined: 26 Jan 2021
Posts: 1197
Location: Russia

macomics 20 Oct 2025, 09:32

Let the assembler generate the desired sequence of mulss without cycles and conditions, depending on the specific exponent.

Code:

macro int_power_inline p, x, n { local t
  if n = 0
    movss xmm0, [const1]
    movss p, xmm0
  else if n = 1
    movss xmm0, x
    movss p, xmm0
  else if n = -1
    movss xmm0, [const1]
    movss xmm1, x
    divss xmm0, xmm1
    movss p, xmm0
  else
    if n < 0
      t = 0 - n
    else
      t = n
    end if
    movss xmm0, [const1]
    movss xmm1, x
    while t > 1
      if t and 1
        mulss xmm0, xmm1
      end if
      mulss xmm1, xmm1
      t = t shr 1
    end while
    mulss xmm0, xmm1
    if n < 0
      movss xmm1, [const1]
      divss xmm1, xmm0
      movss p, xmm1
    else
      movss p, xmm0
    end if
  end if
}

20 Oct 2025, 09:32

revolution
When all else fails, read the source

Joined: 24 Aug 2004
Posts: 20753
Location: In your JS exploiting you and your system

revolution 20 Oct 2025, 13:31

macomics wrote:

Let the assembler generate the desired sequence of mulss without cycles and conditions, depending on the specific exponent.
<snip>

The code posted generates one more multiply than necessary for n>1

20 Oct 2025, 13:31

Roman

Joined: 21 Apr 2012
Posts: 2016

Roman 20 Oct 2025, 15:02

little optimization code macomics.

Code:

mov xmm1 [float value]
mov  ecx,13
call xmpow

xmpow:
     movss xmm0, [.const1]
     jecxz .exit
@@:  cmp ecx, 1
     jz .final
     test ecx, 1
     jz .next
      mulss xmm0, xmm1
.next:
      mulss xmm1, xmm1
      shr ecx, 1
      jmp @b
.final: mulss xmm0, xmm1
.exit: ret

.const1 dd 1.0

20 Oct 2025, 15:02

macomics

Joined: 26 Jan 2021
Posts: 1197
Location: Russia

macomics 20 Oct 2025, 15:27

revolution wrote:

macomics wrote:
Let the assembler generate the desired sequence of mulss without cycles and conditions, depending on the specific exponent.
<snip>
The code posted generates one more multiply than necessary for n>1

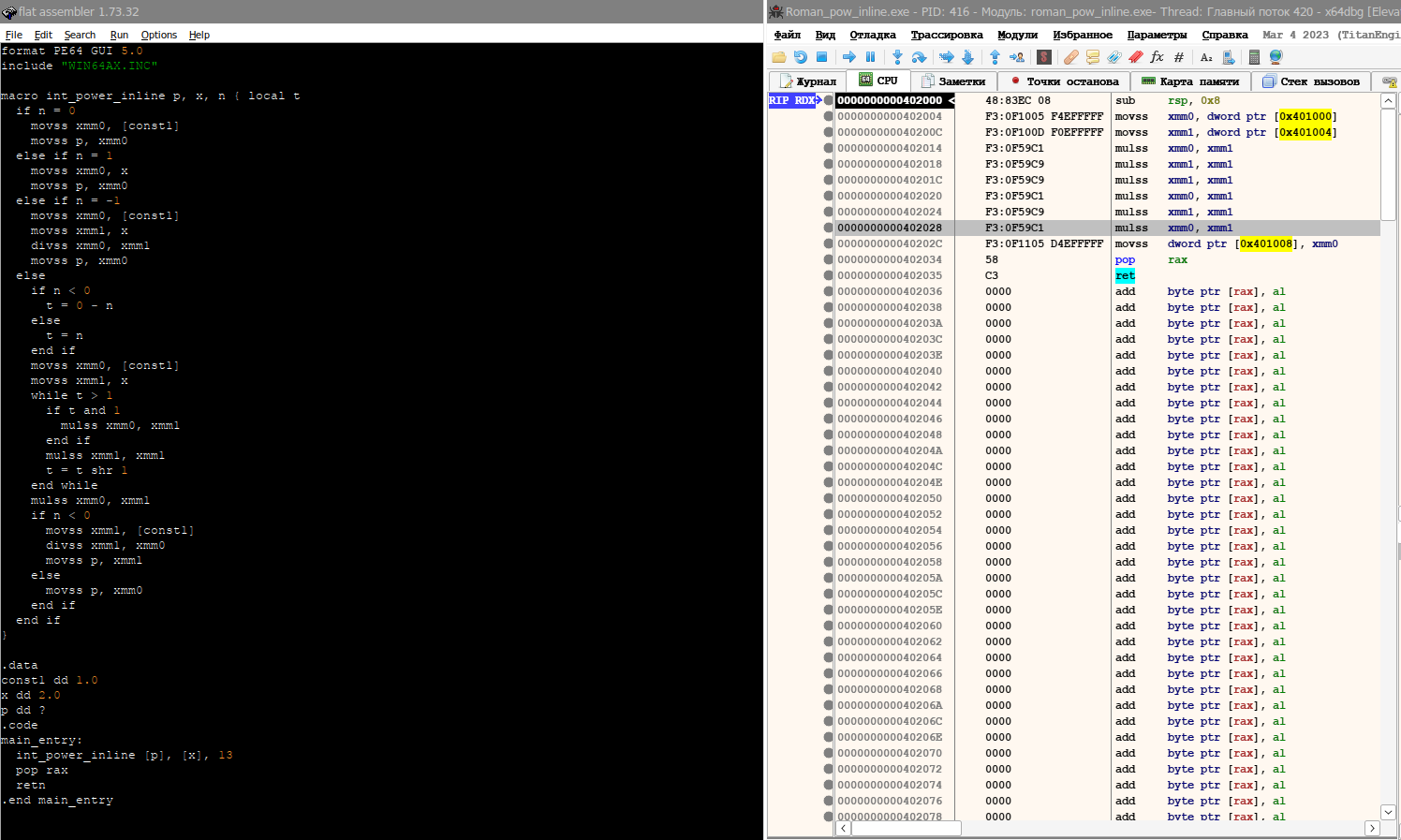

I checked and everything is ok. It generates what I need.
The last mulss is just for the highest bit in the exponent.

Description:
Filesize:	246.17 KB
Viewed:	183 Time(s)

20 Oct 2025, 15:27

macomics

Joined: 26 Jan 2021
Posts: 1197
Location: Russia

macomics 20 Oct 2025, 15:44

Roman wrote:

little optimization code macomics.

Take a look at the latest changes in my code. There are other optimizations in the loop.

20 Oct 2025, 15:44

Roman

Joined: 21 Apr 2012
Posts: 2016

Roman 20 Oct 2025, 18:14

macro int_power_inline good. And some cases best variant.
But sometime we needed calculate with proc xmpow.
I start writing physic for my 3D game.
And I needed using proc xmpow.

20 Oct 2025, 18:14

revolution
When all else fails, read the source

Joined: 24 Aug 2004
Posts: 20753
Location: In your JS exploiting you and your system

revolution 20 Oct 2025, 22:56

macomics wrote:

I checked and everything is ok. It generates what I need.
The last mulss is just for the highest bit in the exponent.

I put this:

Code:

const1:
int_power_inline [esp],[esp],2

It generated this:

Code:

        movss xmm0,dword [0x0]
        movss xmm1,dword [esp]
        mulss xmm1,xmm1
        mulss xmm0,xmm1
        movss dword [esp],xmm0

That has two multiplies. But it can be done with one.

Code:

        movss xmm0,dword [esp]
        mulss xmm0,xmm0
        movss dword [esp],xmm0

The "const1" is never required, unless it needs to compute for n<=0. Starting at the highest bit and working down allows the code to generate the minimal multiplies.

20 Oct 2025, 22:56

macomics

Joined: 26 Jan 2021
Posts: 1197
Location: Russia

macomics 21 Oct 2025, 00:21

I agree. We can take away of multiplication by 1

Code:

macro int_power_inline p, x, n { local f, t
  if n = 0
    movss xmm0, [const1]
    movss p, xmm0
  else if n = 1
    movss xmm0, x
    movss p, xmm0
  else if n = -1
    movss xmm0, [const1]
    movss xmm1, x
    divss xmm0, xmm1
    movss p, xmm0
  else
    f = 0
    if n < 0
      t = 0 - n
    else
      t = n
    end if
    movss xmm1, x
    while t > 1
      if t and 1
        if f = 0
          f = 1
          movss xmm0, xmm1
        else
          mulss xmm0, xmm1
        end if
      end if
      mulss xmm1, xmm1
      t = t shr 1
    end while
    if f = 0
      if n < 0
        movss xmm0, [const1]
        divss xmm0, xmm1
        movss p, xmm0
      else
        movss p, xmm1
      end if
    else
      mulss xmm0, xmm1
      if n < 0
        movss xmm1, [const1]
        divss xmm1, xmm0
        movss p, xmm1
      else
        movss p, xmm0
      end if
    end if
  end if
}

21 Oct 2025, 00:21

revolution
When all else fails, read the source

Joined: 24 Aug 2004
Posts: 20753
Location: In your JS exploiting you and your system

revolution 21 Oct 2025, 00:34

A flaw with using n as a raw value in "t = 0 - n" is with this:

Code:

int_power_inline [esp],[esp],-1-1

The n needs to be put inside parentheses:

Code:

t = 0 - (n)

21 Oct 2025, 00:34

bitRAKE

Joined: 21 Jul 2003
Posts: 4307
Location: vpcmpistri

bitRAKE 21 Oct 2025, 00:34

What about something like:

Code:

; input: XMM0, ECX
; output XMM0 <- XMM0^ECX

; First, handle special cases: 0, 1 and powers of two:

.reduce:
        shr ecx, 1
        jz .done
        jc .first_bit
        vmulss  xmm0, xmm0, xmm0
        jmp .reduce

.first_bit:
        vmovss xmm1, xmm0
; perhaps replace above, for no merge dependancy from prior xmm1
;       vmovaps xmm1, xmm0

; Second hot loop to complete calculation:

.square:
        vmulss xmm1, xmm1, xmm1
        shr ecx, 1
        jnc .square
        vmulss xmm0, xmm0, xmm1
        jnz .square
.not_zero:
        retn

.done:  jc .not_zero ; perdict backward likely jump
        mov ecx, 1f ; 0x3f800000
        vmovd xmm0, ecx
        retn

; + No memory access.

edit: ... test/timing of algorithm.

21 Oct 2025, 00:34
