**FASM x64 Win32 GUI Controls — Custom Draw ListView Example**

Hi everyone,

I have been working on a series of **pure FASM x64 Win32 GUI examples**, with the goal of eventually going through the common Windows controls one by one and showing how they actually work underneath.

One thing I noticed very quickly is that there is surprisingly little practical material available for **custom-drawing Win32 controls in 64-bit assembly**.

There are many C/C++ examples, plenty of documentation describing the APIs, and countless high-level GUI frameworks — but when you want to do things such as:

* `NM_CUSTOMDRAW`
* control subclassing
* custom header painting
* dark controls
* DPI-aware custom layouts
* owner/custom-painted window areas
* proper x64 structure layouts
* correct Win64 message handling

...in **pure FASM x64**, examples become much harder to find.

So rather than keeping these experiments private, I want to turn them into a collection of complete, commented examples that other assembly programmers can study, modify, and reuse.

The idea is simple:

**Understand Windows. Don't just memorize Windows.**

This first larger example focuses on the **ListView control**.

### What is included

**Main window**

* Pure Win64 FASM
* Unicode `W` APIs throughout
* Borderless `WS_POPUP` window
* Fully custom-painted dark client area
* Custom dark title bar
* Custom close button
* Window dragging through the custom title bar
* Manual resize hit-testing through `WM_NCHITTEST`
* Resize support on:

* left
* right
* top
* bottom
* all four corners
* Centralized child-control layout
* Correct repainting during resize

**Modern DPI support**

* `DPI_AWARENESS_CONTEXT_PER_MONITOR_AWARE_V2`
* Initial DPI obtained with `GetDpiForWindow`
* `WM_DPICHANGED` support
* DPI-scaled title-bar height
* DPI-scaled close button
* DPI-scaled resize borders
* DPI-scaled margins
* DPI-scaled header font
* Correct use of Windows' suggested rectangle when the DPI changes
* Works properly when moving between monitors with different scaling

**ListView**

* Native `SysListView32`
* `LVS_REPORT`
* `LVS_SINGLESEL`
* `LVS_EX_FULLROWSELECT`
* Unicode ListView messages
* Multiple columns
* Automatic vertical/horizontal scrolling
* Dark ListView background
* Dark text background
* Custom text colors

**Dark scrollbar**

Instead of writing an entire custom scrollbar implementation, the example uses the Windows theme system:

`SetWindowTheme(..., "DarkMode_Explorer", ...)`

This gives the native ListView scrollbar a dark appearance while keeping all normal Windows scrollbar behavior.

**ListView Custom Draw**

The example handles:

* `WM_NOTIFY`
* `NM_CUSTOMDRAW`
* `CDDS_PREPAINT`
* `CDDS_ITEMPREPAINT`
* `CDRF_NOTIFYITEMDRAW`
* `CDRF_NEWFONT`

Normal items receive custom text/background colors.

Selected rows also receive their own custom colors instead of the normal Windows blue selection bar.

The example also demonstrates the important detail of modifying `NMLVCUSTOMDRAW.uItemState` so Windows does not paint its default blue selection over our custom selection colors.

**Header control**

The ListView header is retrieved with:

`LVM_GETHEADER`

and then subclassed using:

`SetWindowLongPtrW`

The original header procedure is preserved and normal messages are passed back through:

`CallWindowProcW`

The header itself is custom painted with GDI.

It includes:

* Dark header background
* Rounded header buttons using `RoundRect`
* Custom header font
* Custom text colors
* Different text colors for different columns
* Custom vertical separators
* Centered header text
* Ellipsis support
* Proper GDI object selection/restoration
* Correct cleanup of created GDI objects

**Responsive columns**

The ListView columns are not permanently fixed-width.

When the main window is resized, the ListView grows/shrinks and the column widths are recalculated proportionally.

The final column therefore continues all the way to the right side of the ListView instead of leaving an ugly empty area.

### Why I am posting these examples

The intention is not merely to produce a pretty ListView.

I want the source to show the actual Windows mechanisms involved:

`WM_NOTIFY`

`NMHDR`

`NMLVCUSTOMDRAW`

`WM_PAINT`

`BeginPaint / EndPaint`

`GetClientRect`

`SetWindowLongPtrW`

`CallWindowProcW`

`WM_NCHITTEST`

`WM_DPICHANGED`

GDI brushes, fonts, rectangles, hit testing, subclassing, DPI scaling, message flow, x64 structures, and the Win64 calling convention.

Later examples can build on the same foundation and cover other controls such as:

* TabControl
* TreeView
* Toolbar
* StatusBar
* Buttons
* ComboBox
* Header controls
* and others

The goal is eventually to have a collection where somebody interested in **native Win64 GUI programming with FASM** can find complete working examples instead of having to translate fragments of C code and guess the required 64-bit structures and offsets.

Where structures are unclear or undocumented, another very useful technique is to verify the actual Windows layout directly with **WinDbg `dt`** and then reproduce that layout correctly in FASM.

Everything will remain focused on native Windows programming and on explaining what Windows is actually doing underneath.

This ListView example has already grown far beyond the usual five-line “create a ListView” demonstration, but that is exactly the point:

**one control, explored properly.**

Next I plan to keep expanding the collection until the major Win32 controls have received the same treatment.

In fasmw include\api\user32 not have SetProcessDpiAwarenessContext,GetDpiForWindow,SetWindowLongPtrW

Not exist Process32FirstW and Process32NextW in kernel32.inc

i compiled example. Just writed this my hands.

Maybe some include missing?

In my projects i usualy put my FasmAPI libs folder.
To compile the example without any problems.

Those missing API are from user32.dll. You need to add them to your user32.inc in your FASM folder.

Modern Approach Is Just To Combine The Separate GUI & The Signals Processing Custom Protocol (Usually Console/String/Numeric Fuctions), but still keeping them apart..

Like you do the Presentation In Microsoft Visual Basic 6.0 and you interface the clicks, the scrolls, the whatever thing you do in the form with Microsoft's masm32 ml.exe/link.exe assembled and linked .exe files but could be an exe file handling the Digital Signals Going Through The Microsoft Visual Basic 6.0 form events or whatever..

Use FASMW, and add the missing API to your user32.inc file. It should compile fine after this !

@revolution : Would it be possible to create a thread called something like "FASM Win64 Controls" ?
Then every new windows control added becomes like sub thread underneath ?
When you open "FASM Win64 Controls" You can just click on either "Listview", "Combobox", "listbox" etc ...

Yes. Everyone can create new threads. Please give a descriptive title and place it in the most appropriate forum.

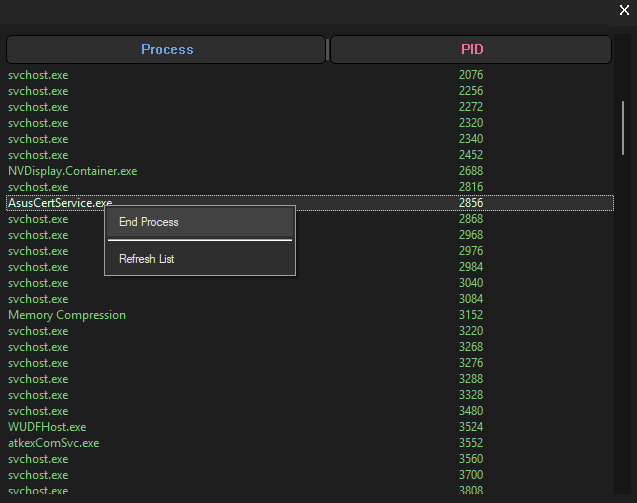

I added a right click menu to end the selected process or refresh the process list ! [Thread Updated]

So any thoughts comments about the project ?
Everyone just takes the download and without saying anything just leave ?
Why ?

I commented that it won't assemble.

If that is fixed than people will be able to try it.

And I commented too.
You must do folder and put in this folder asm code and kernel32.inc and user32.inc

Because in standart fasmw 1.7316 not have this functions.

include\api\user32 not have SetProcessDpiAwarenessContext,GetDpiForWindow,SetWindowLongPtrW

Not exist Process32FirstW and Process32NextW in kernel32.inc

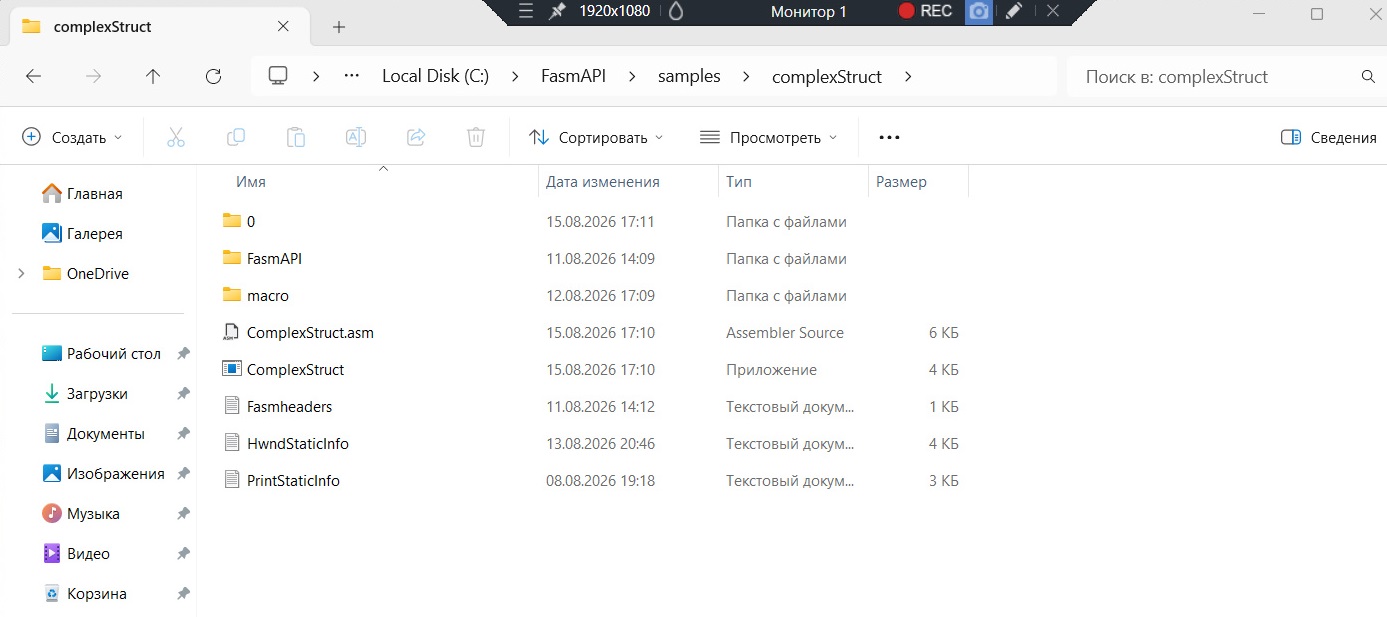

For example my project looking like this.
